Charging

Warning

Ensure that the robot is turned off before charging.

Warning

Connect the cable of the charger to the robot before connecting the charger to the power source.

Note

For more information about the charging process, see the AgileX Scout Mini User Documentation.

You can find the charger at the top right of the standing … . See the following figures for the charger place.

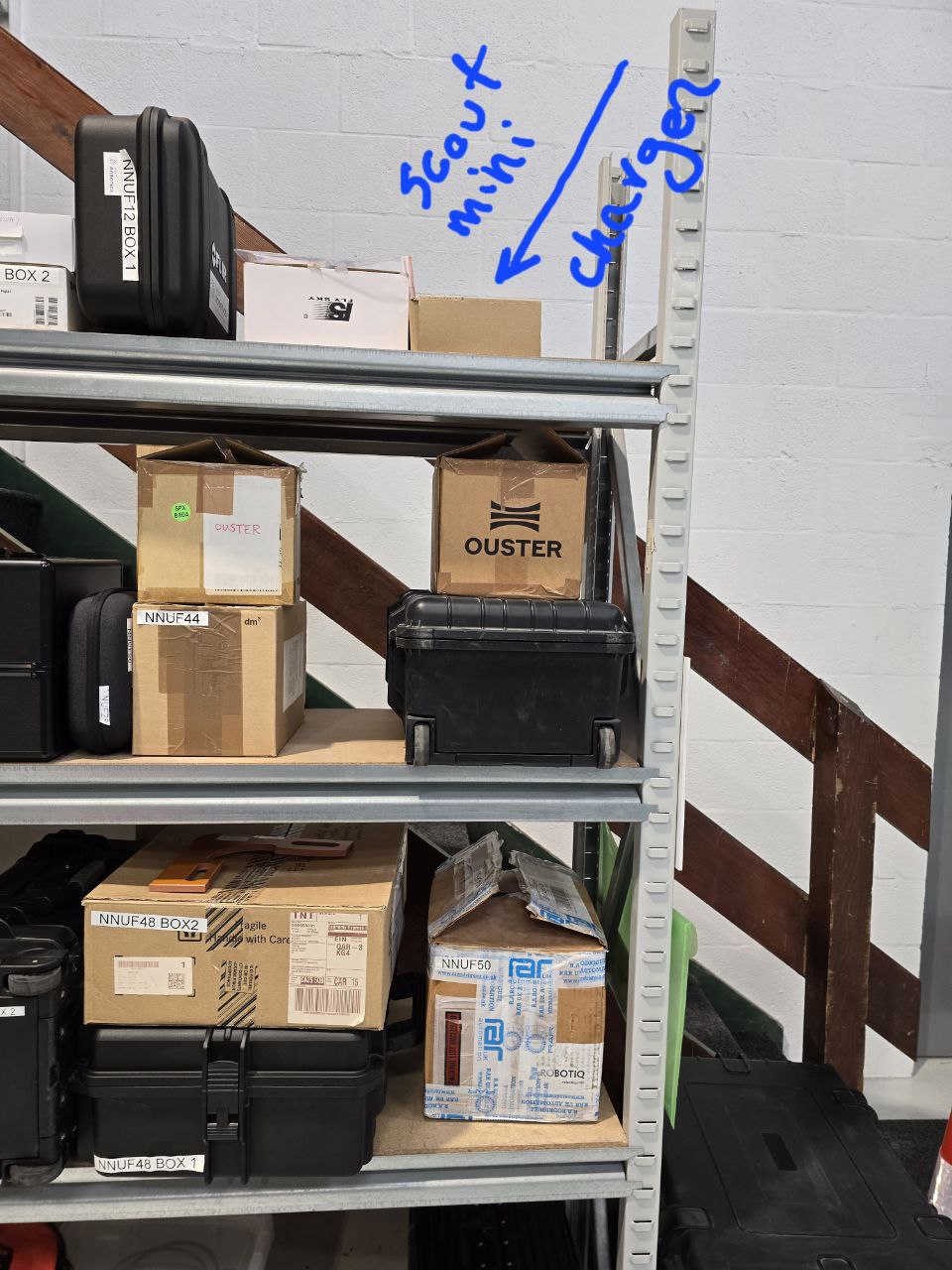

Fig. 58 Scout Mini Charger place

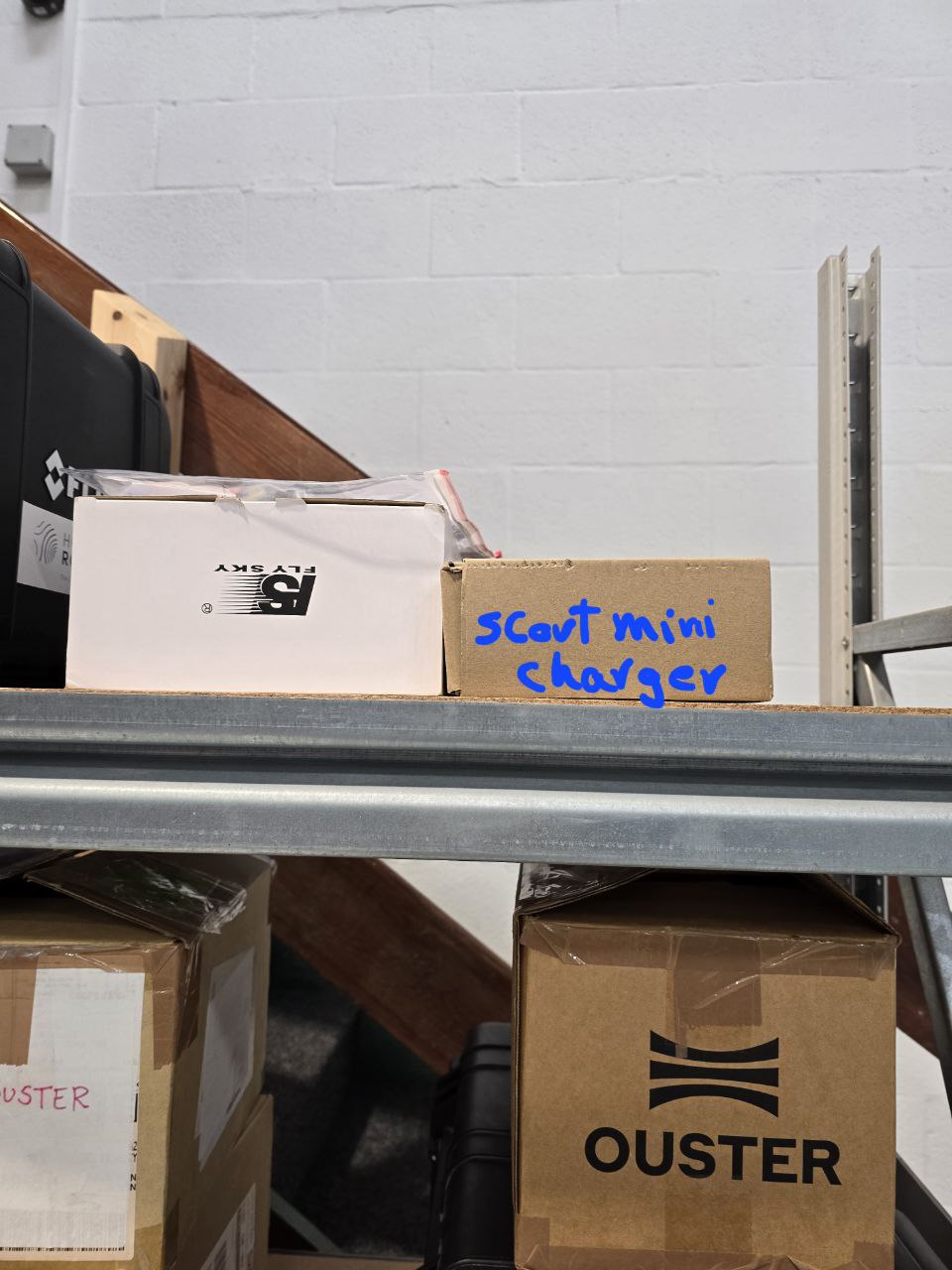

Fig. 59 Scout Mini Charger Place

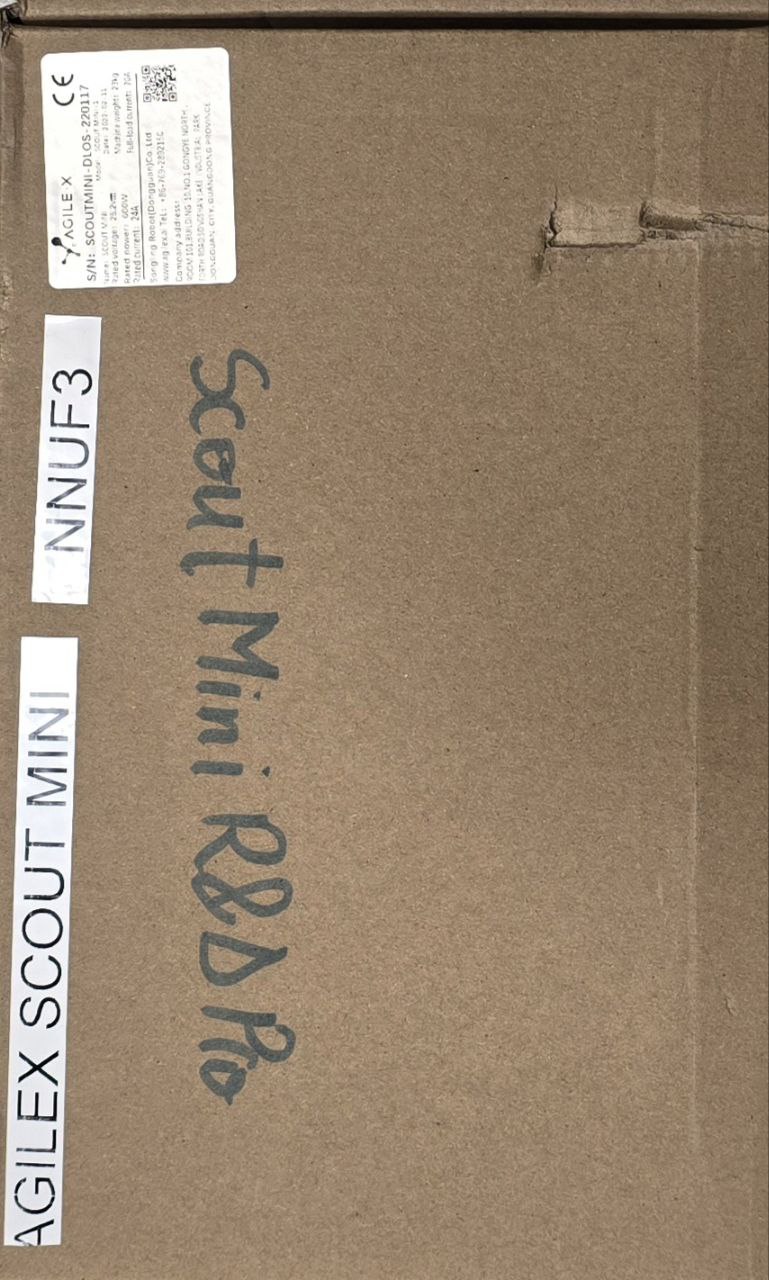

Fig. 60 Scout Mini Charger Box

You can see the charger in the following figures.

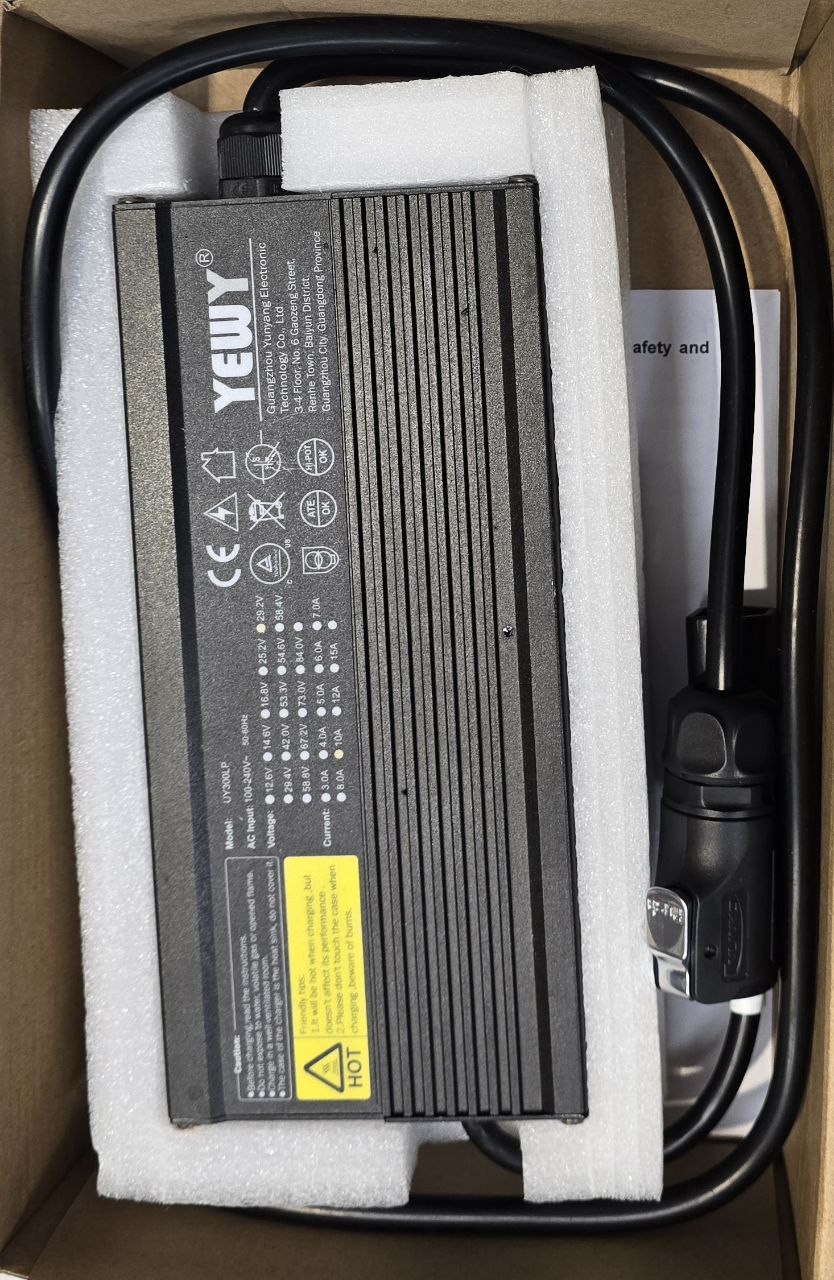

Fig. 61 Scout Mini Charger

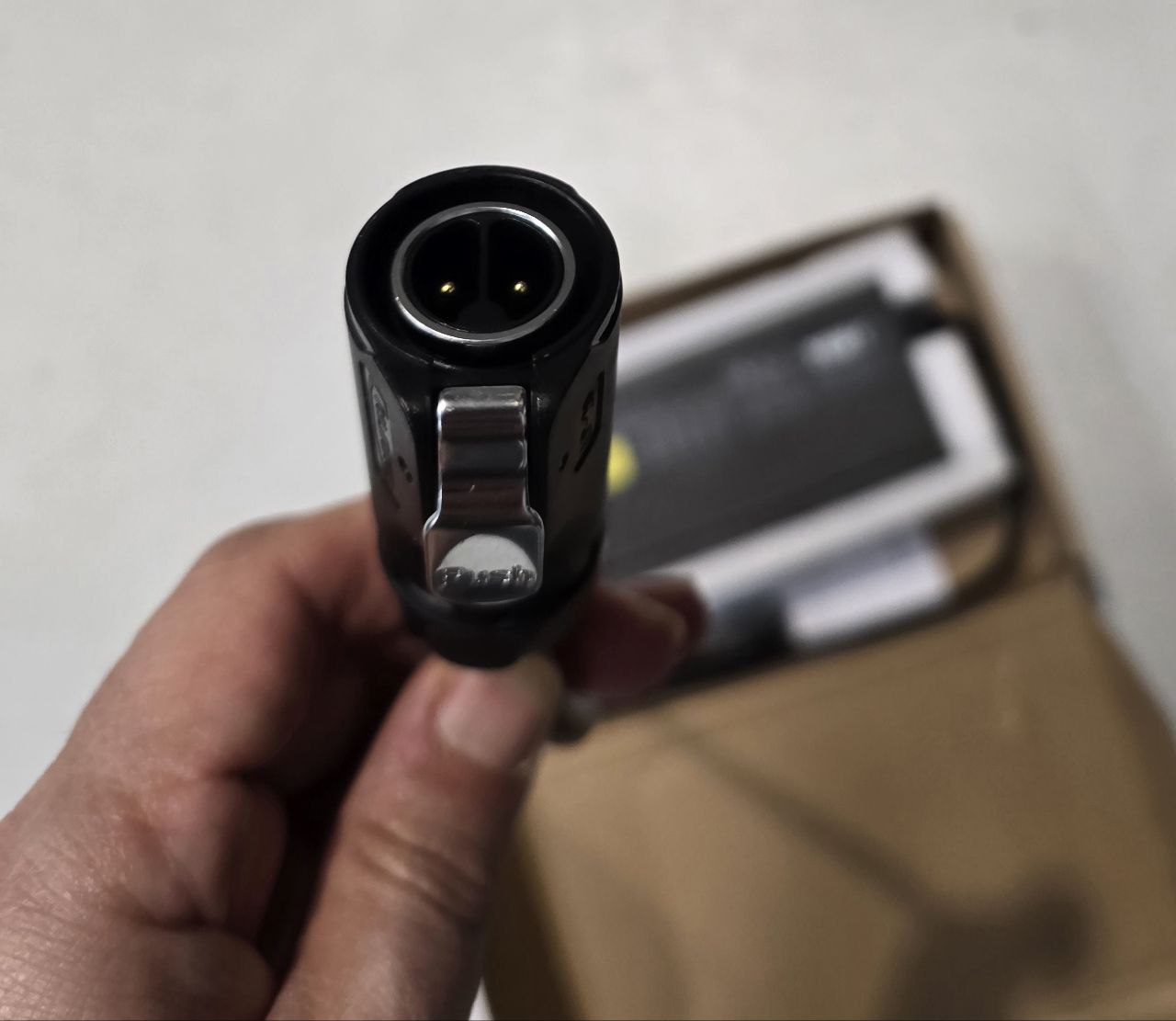

Fig. 62 Scout Mini Charger Port

To connect the charger to the robot, check the following figure.

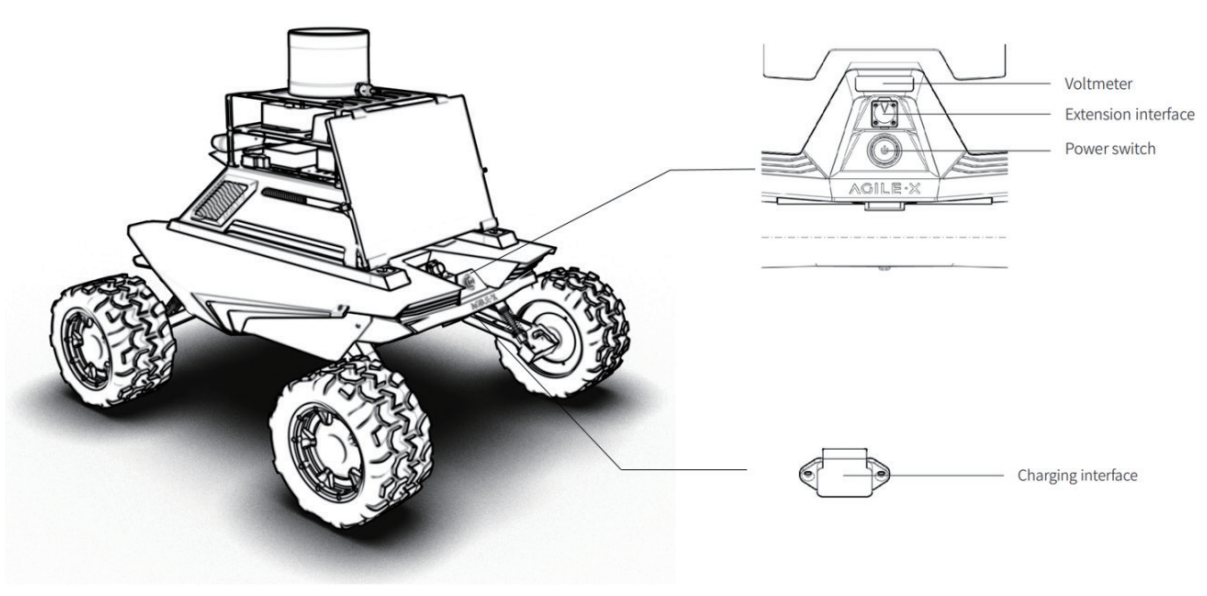

Fig. 63 Scout Mini Charging Port
