Starting Up

Please follow this instruction when powering on the AgileX Scout 2. This instruction is important to ensure the AgileX Scout 2 boots up correctly.

Note

Before starting up the AgileX Scout 2, make sure you have read the Scout 2 Safety information.

Note

You can find the box of the AgileX Scout 2 at the bottom of the water tank. See picture below.

Scout 2 Box

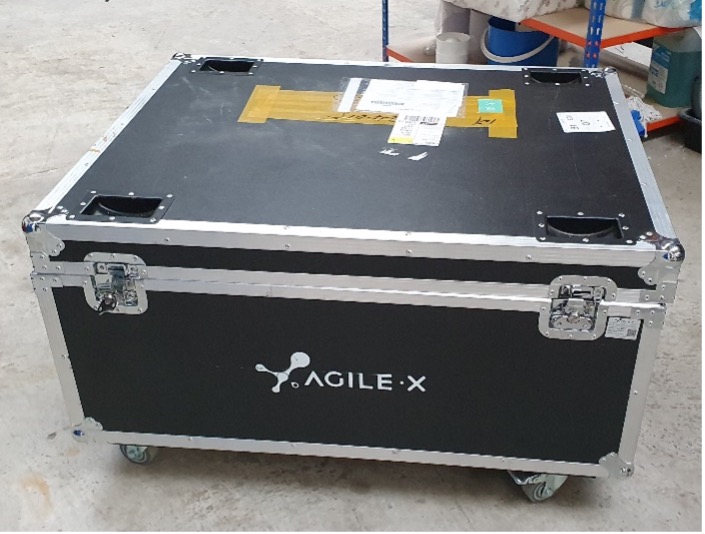

Fig. 65 Scout 2 Box

Robot Place

You can find the AgileX Scout 2 at the Mobile Arena.

Safety Precautions

Before powering on the AgileX Scout 2,

Note

Make sure the power supply is disconnected from the AgileX Scout 2.

Note

Make sure the AgileX Scout 2 is is fully charged.

Powering On the Robot

To power on the AgileX Scout 2, find the control panel in the back of the robot. See the pictures below.

Control Panel

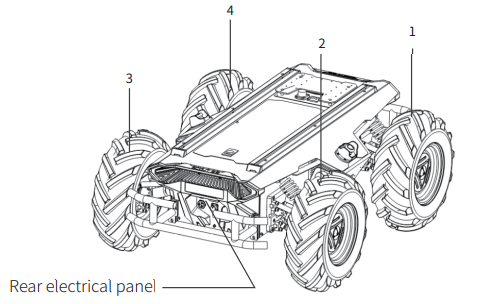

Fig. 66 Rear Electrical Panel

Control Panel

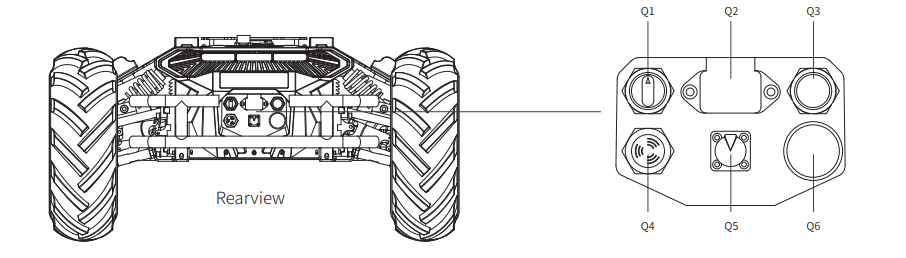

Fig. 67 Control Panel

Then turn the power switch clockwise to powering on the robot. The rear light will turn on and the battery voltage is displayed on screen. Then press the power button in top right (this will ensure connectivity between the joypad and the robot). Look at the picture Powering Off. The battery indicator LED will light up and the voltage level will be displayed on the LED. Look at the picture Powering On.

Powering Off

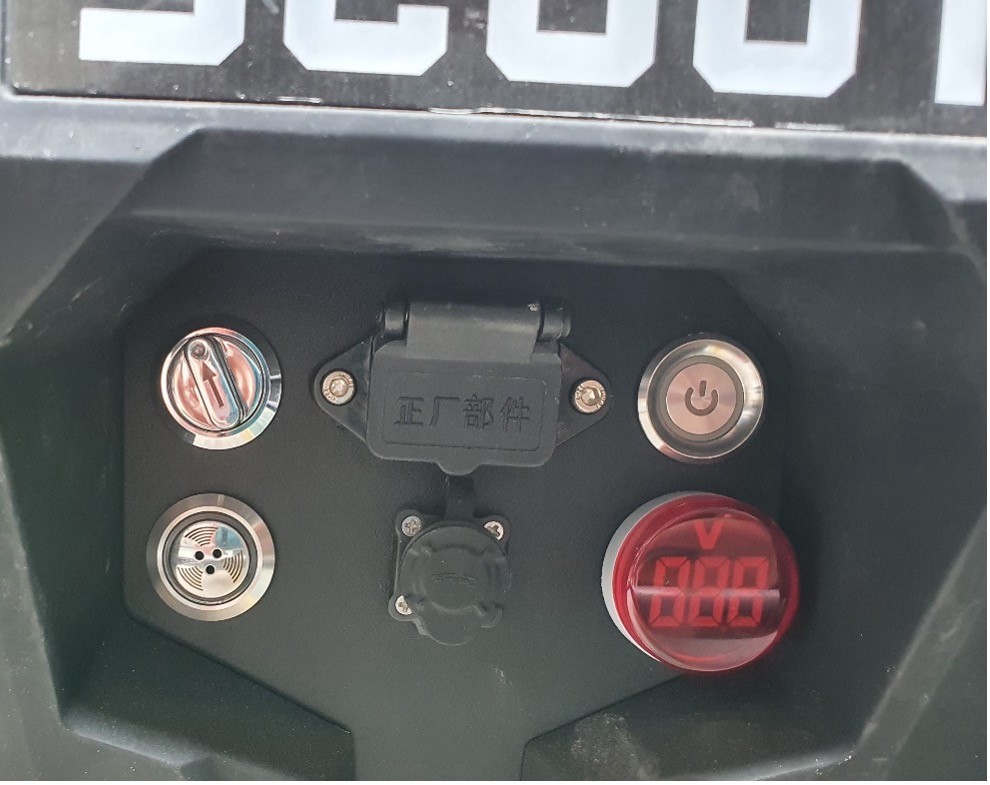

Fig. 68 Powering Off

Powering On

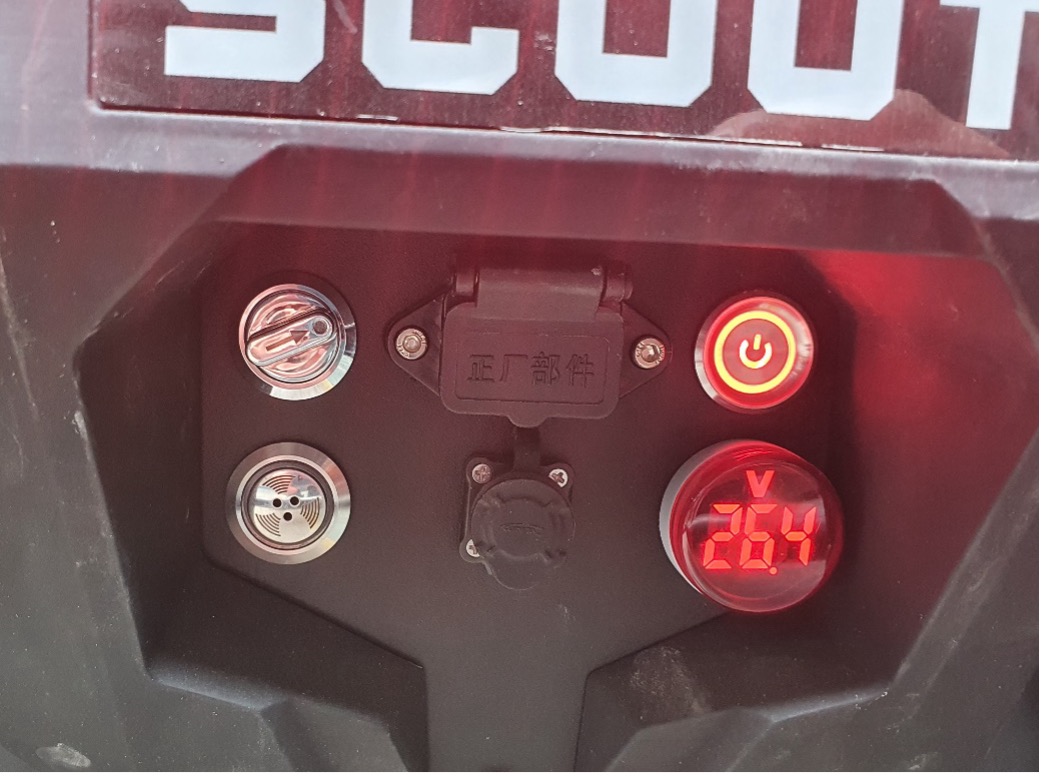

Fig. 69 Powering On



Powering On the Remote Controller

Before powering on the remote controller, make sure the remote controller is fully charged. Also, make sure that all four toggle switches are in the up position. Look at the picture Remote Controller.

To power on the remote controller, press the both power buttons on the remote controller at the same time.

Remote Controller

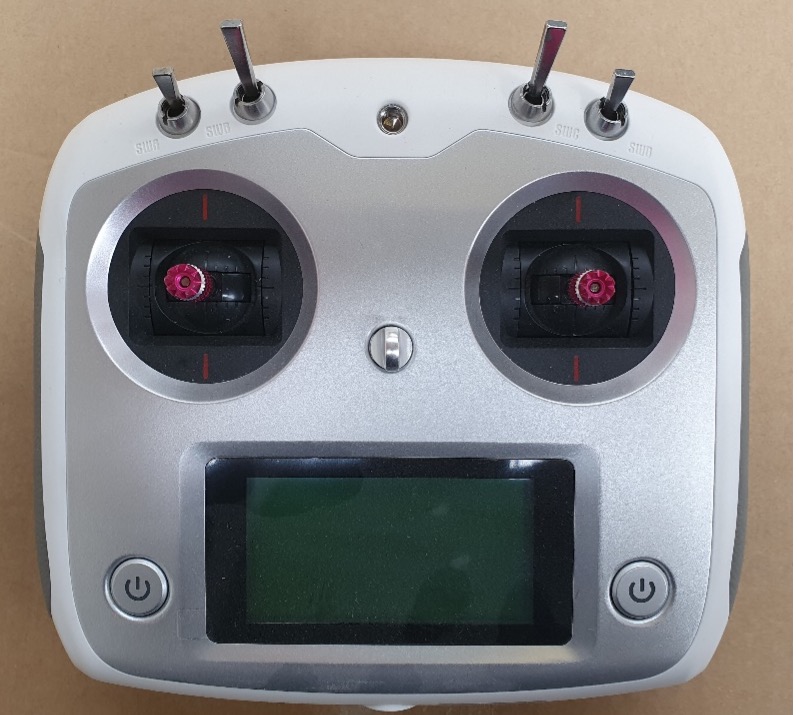

Fig. 70 Remote Controller

Now the AgileX Scout 2 is ready to be used. To control the robot, please read to the Manual Control section.
